E-bike 72V 3000W 24" 26" 27.5" 29”700C MTX39 Rear Wheel Conversion Kits with 72V 26AH Triangle Battery

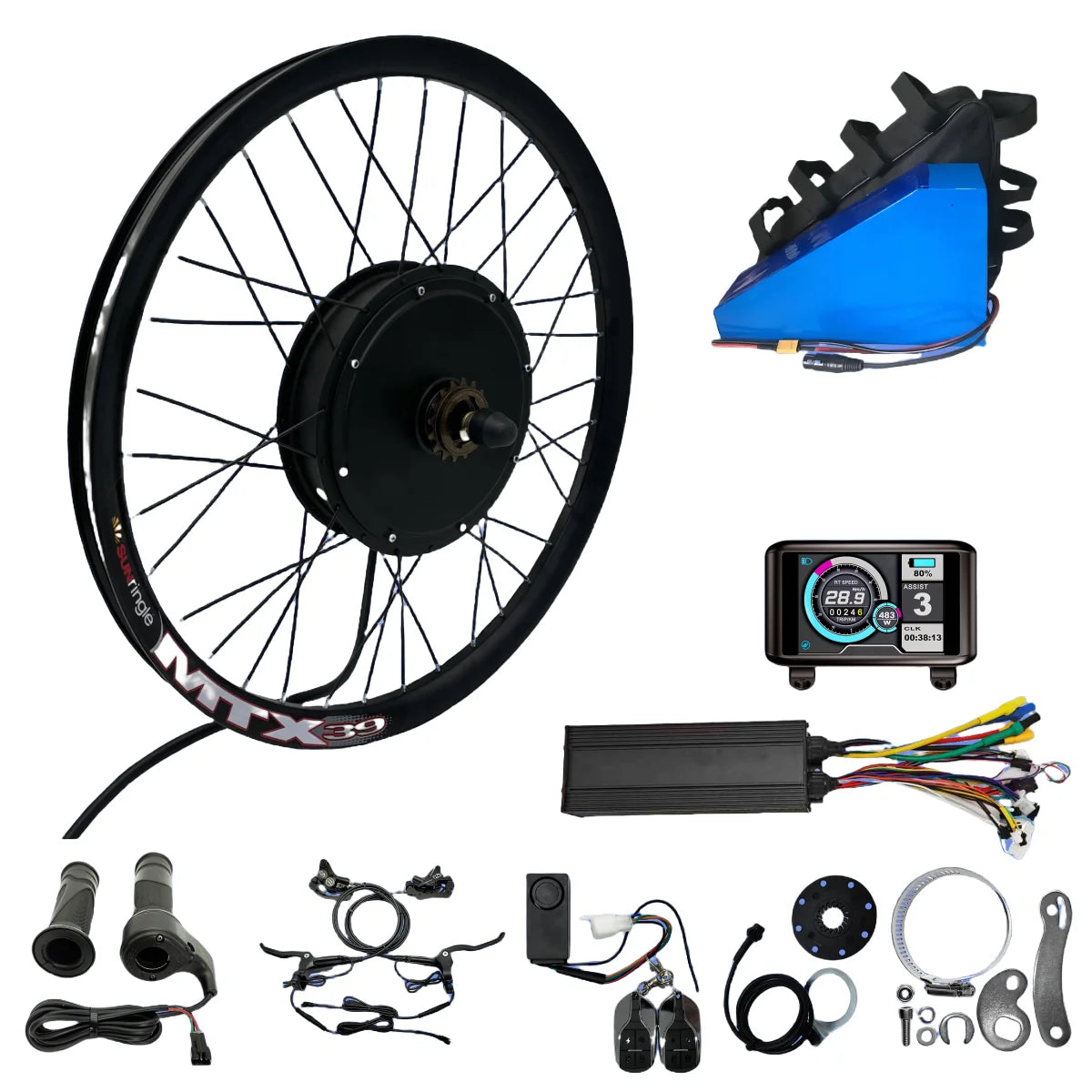

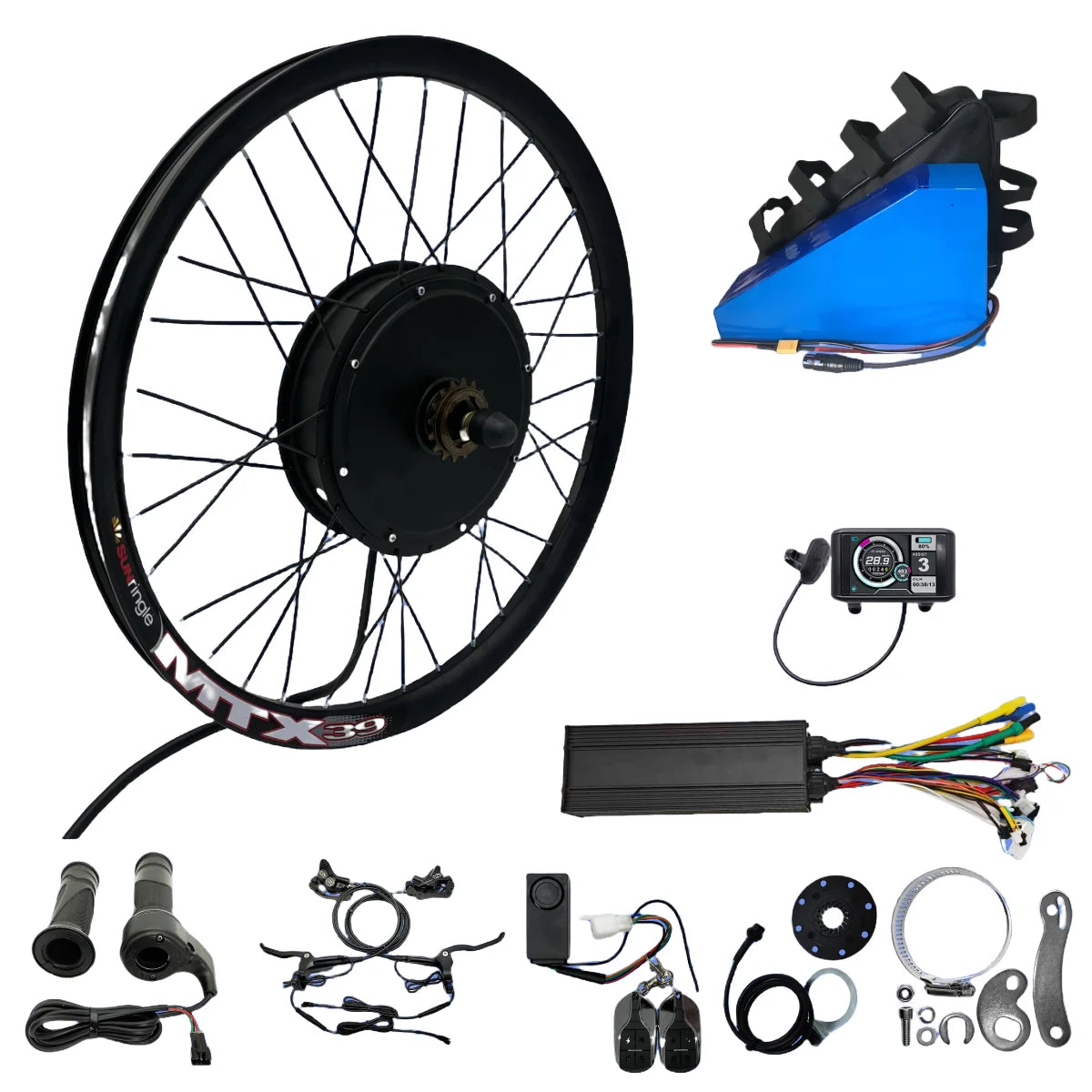

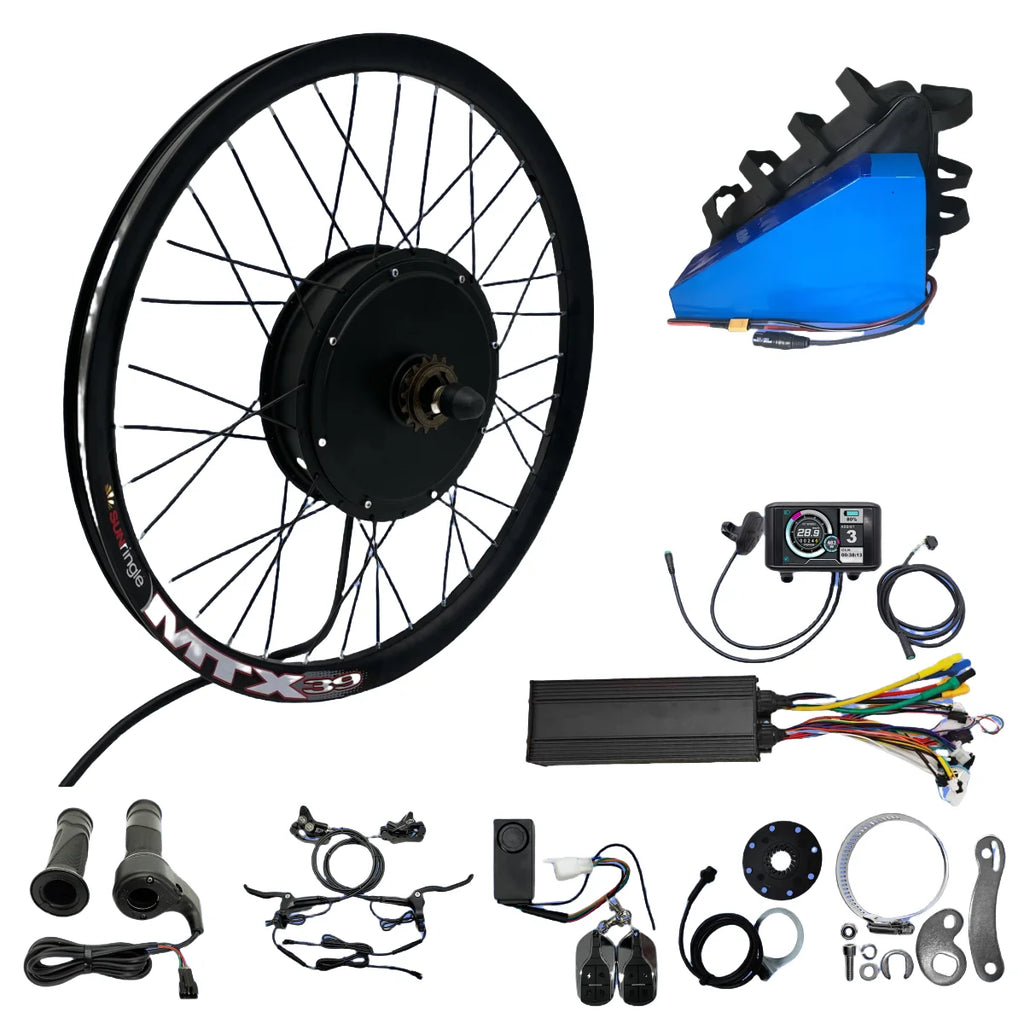

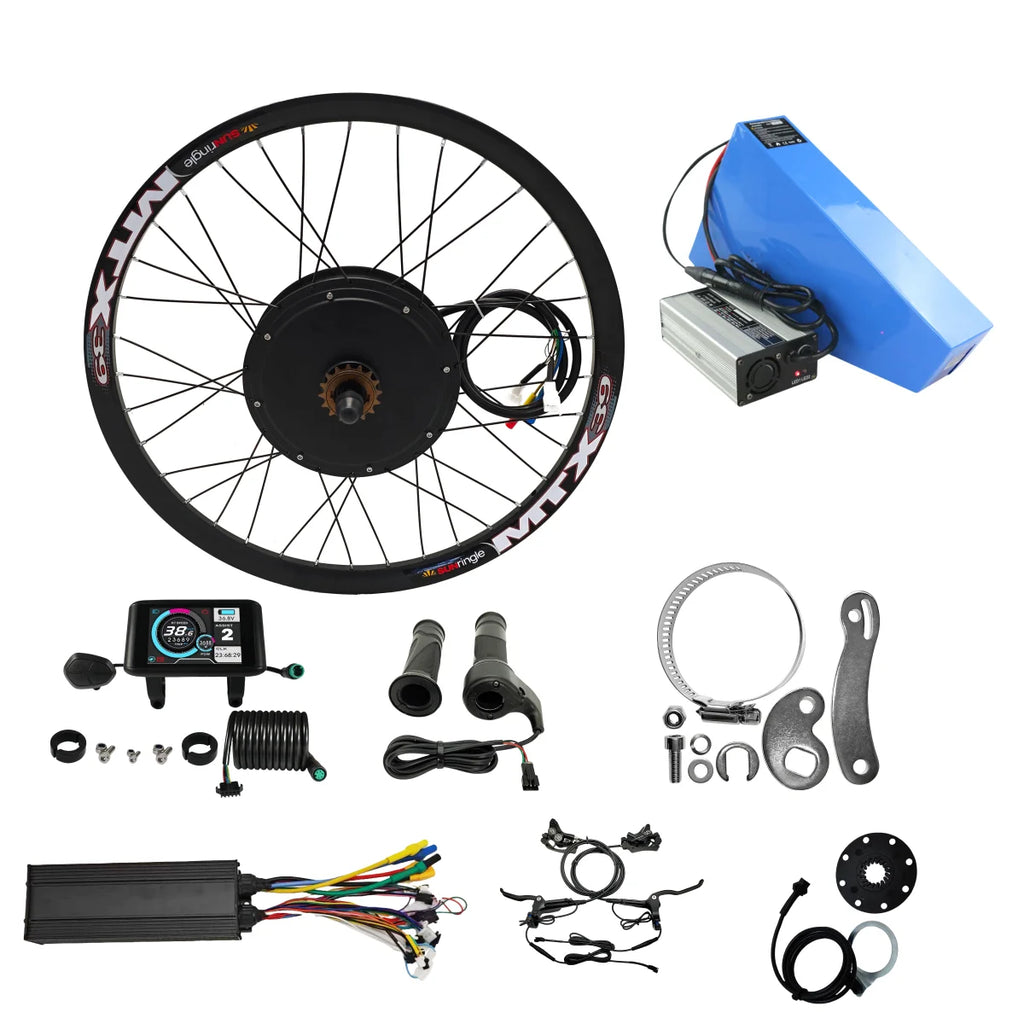

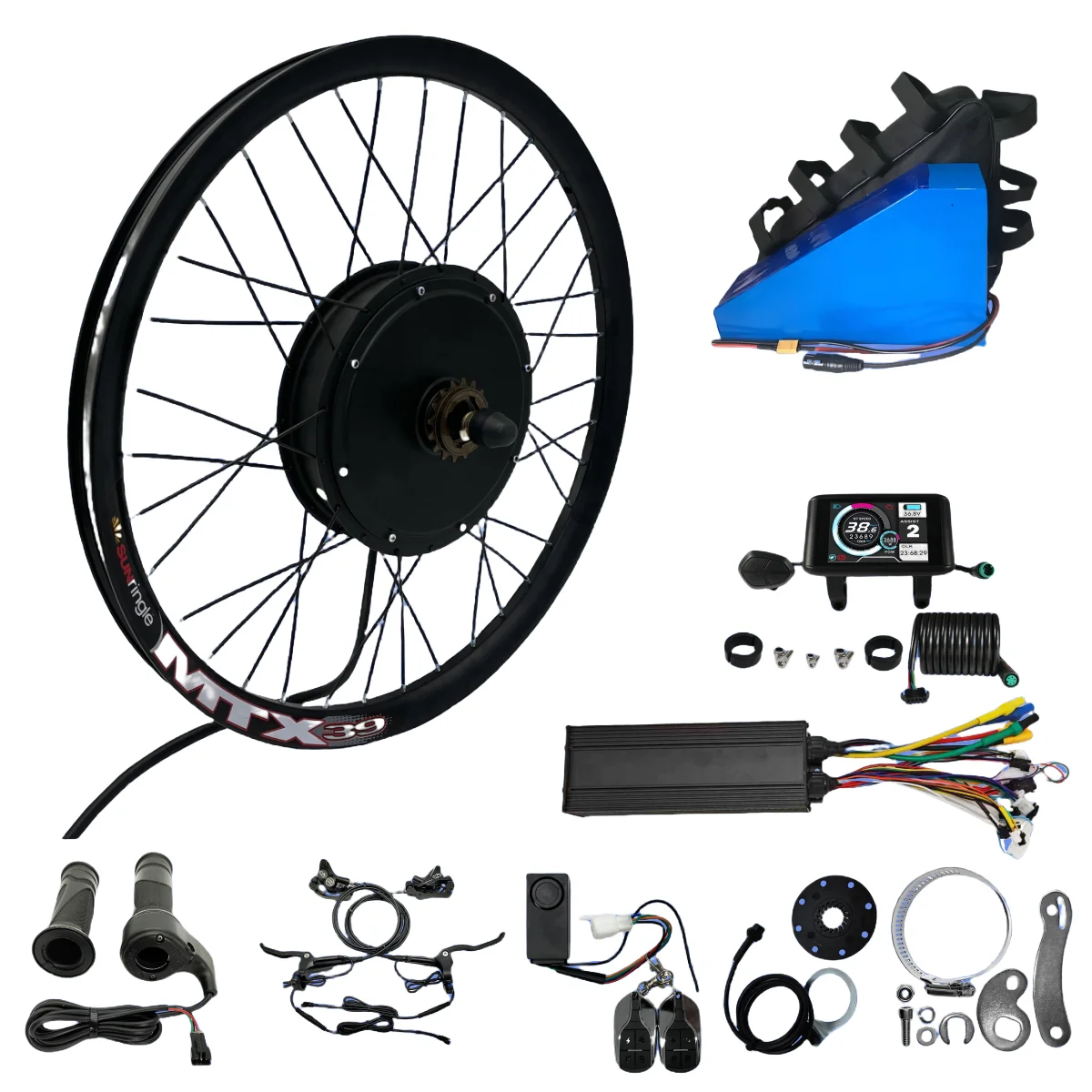

Parts included:

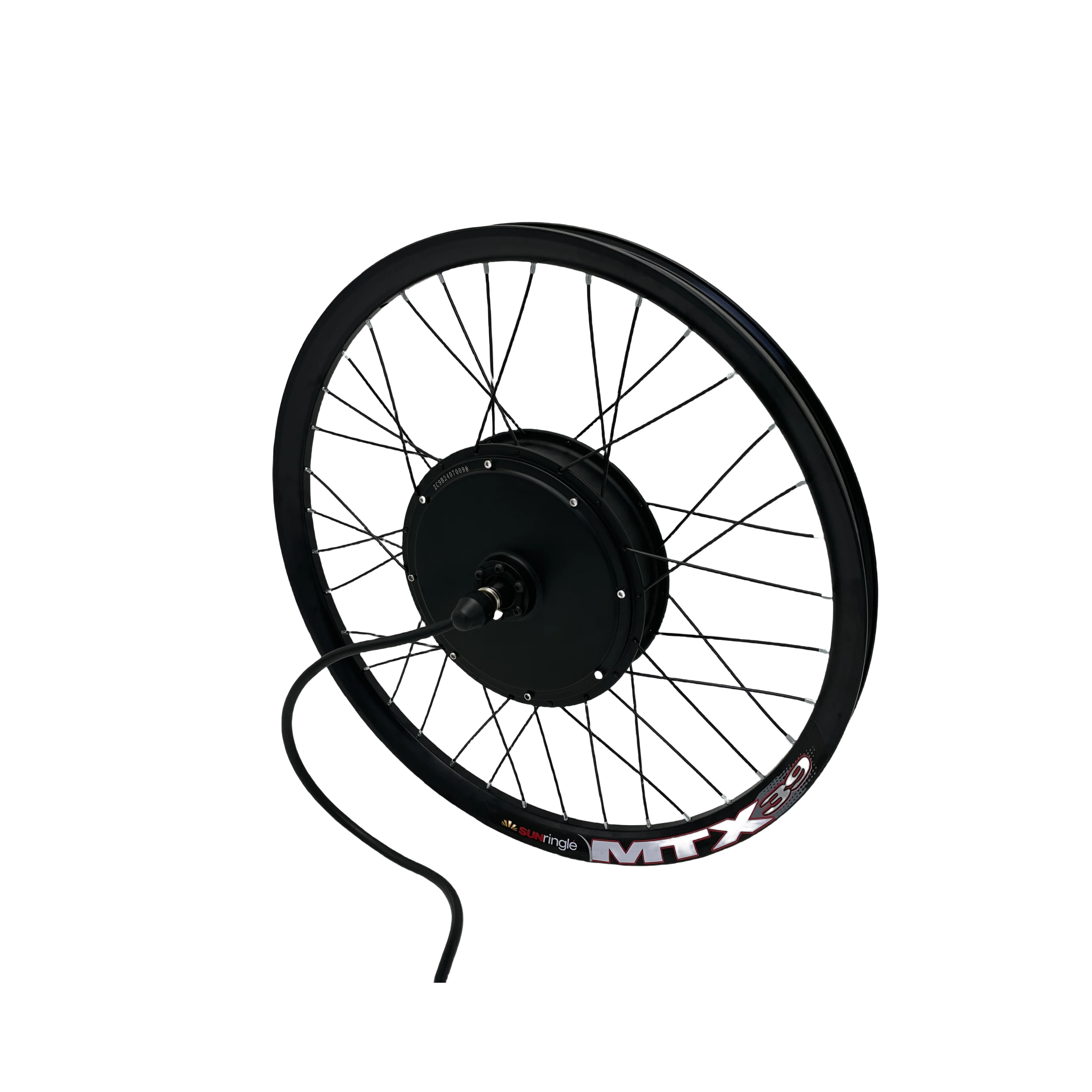

1.72V 3000W 24"/26"/27.5"/29" MTX39 Rear Motor Wheel with Single Speed Freewheel (Without Tire and Tube)

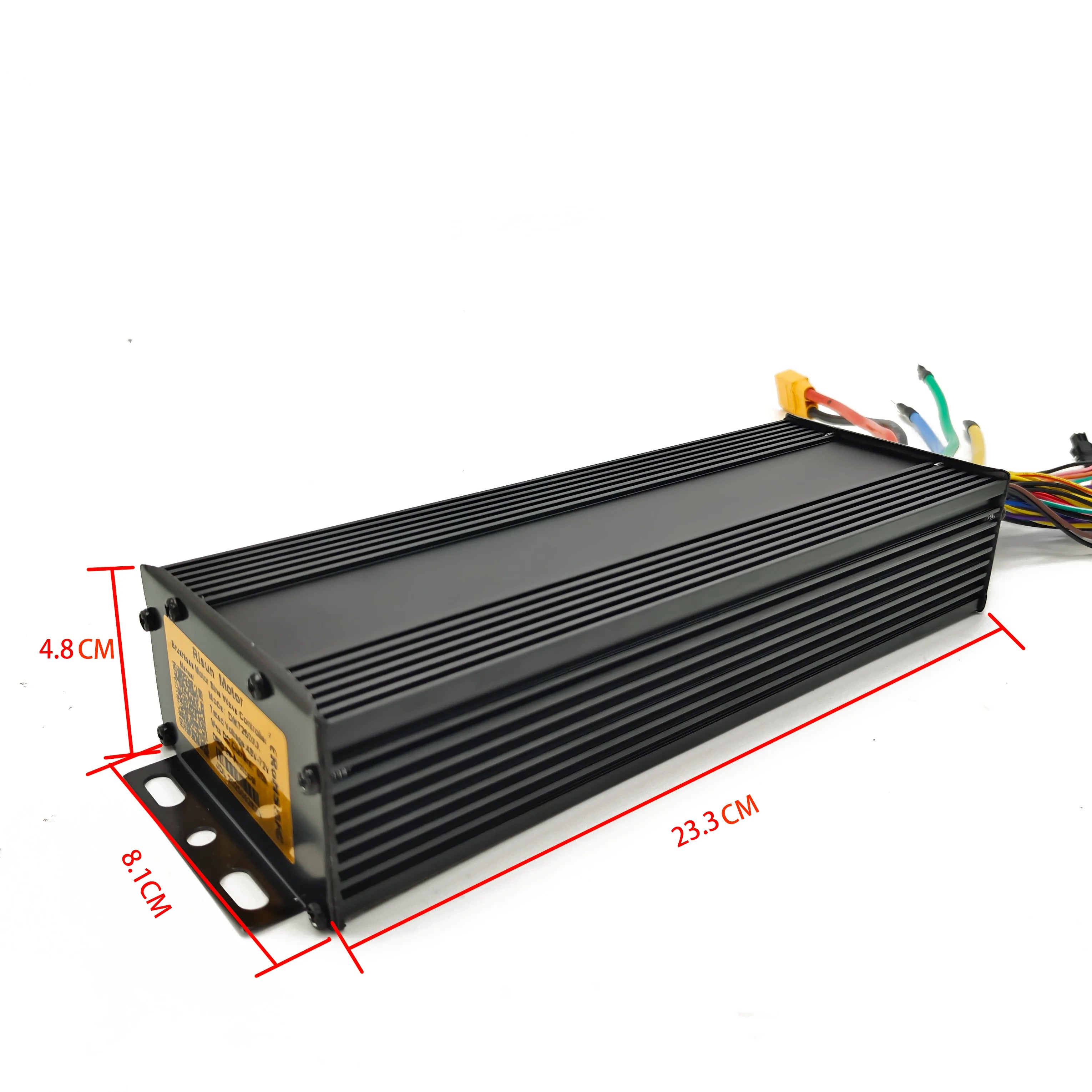

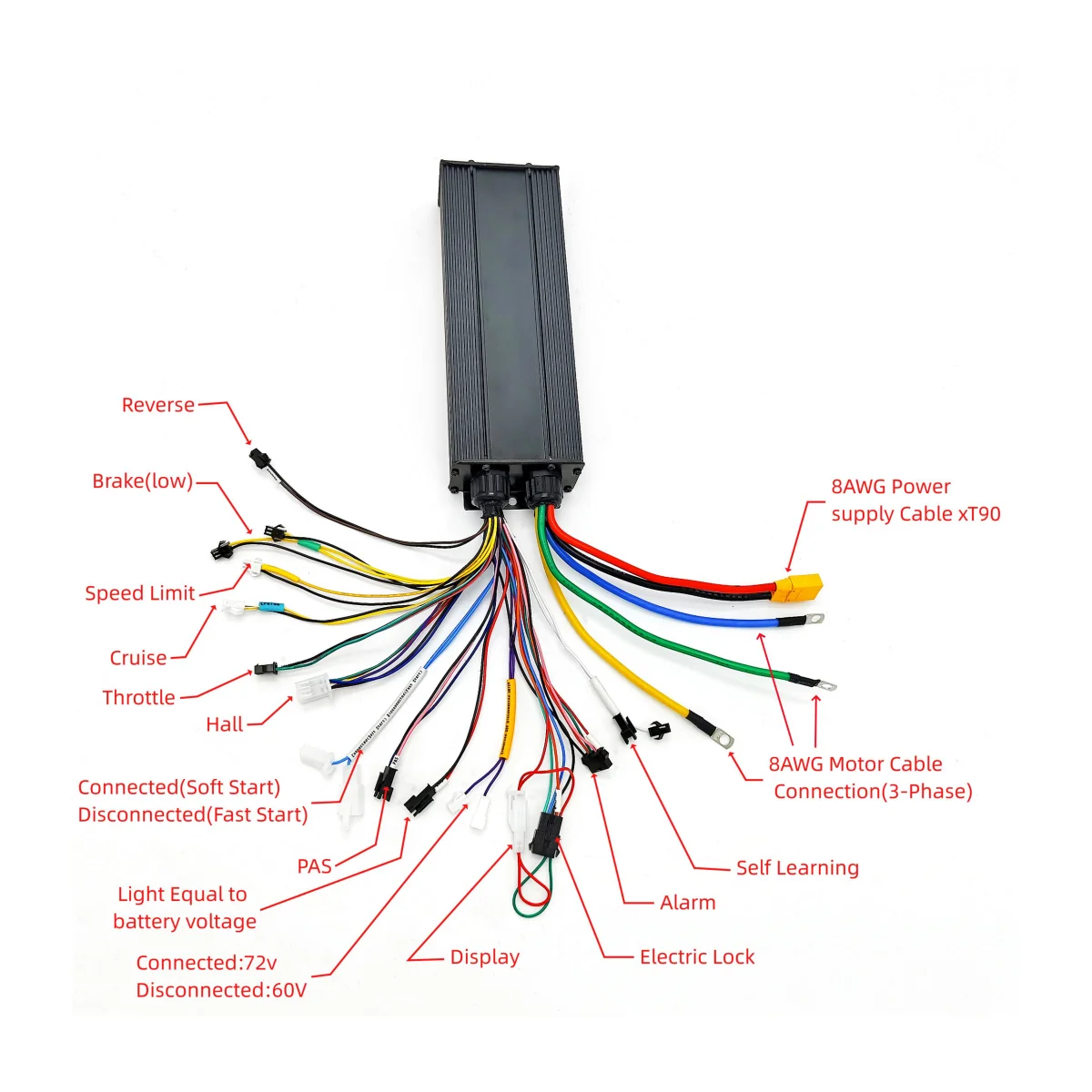

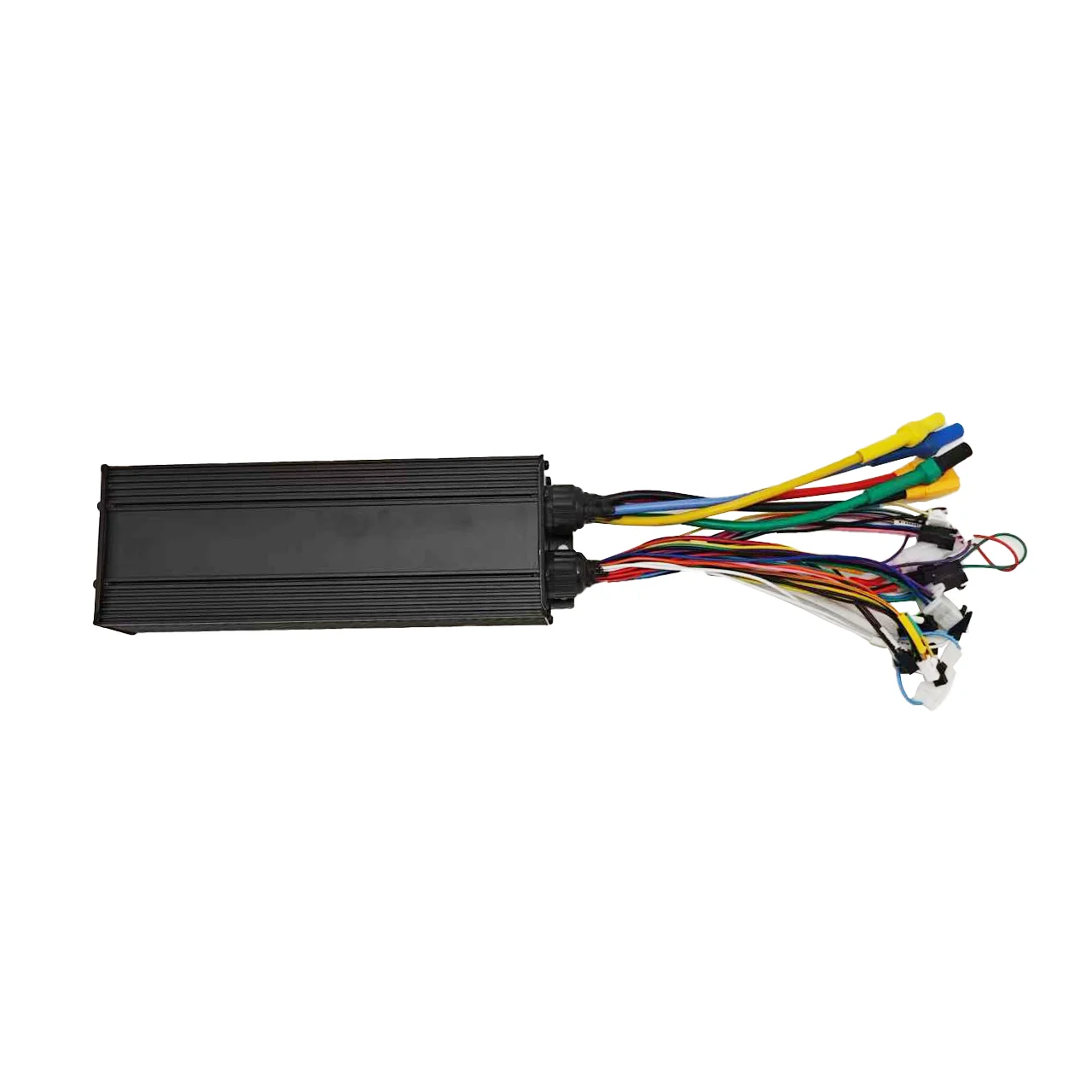

2. 72V 60A Sine Wave Controller

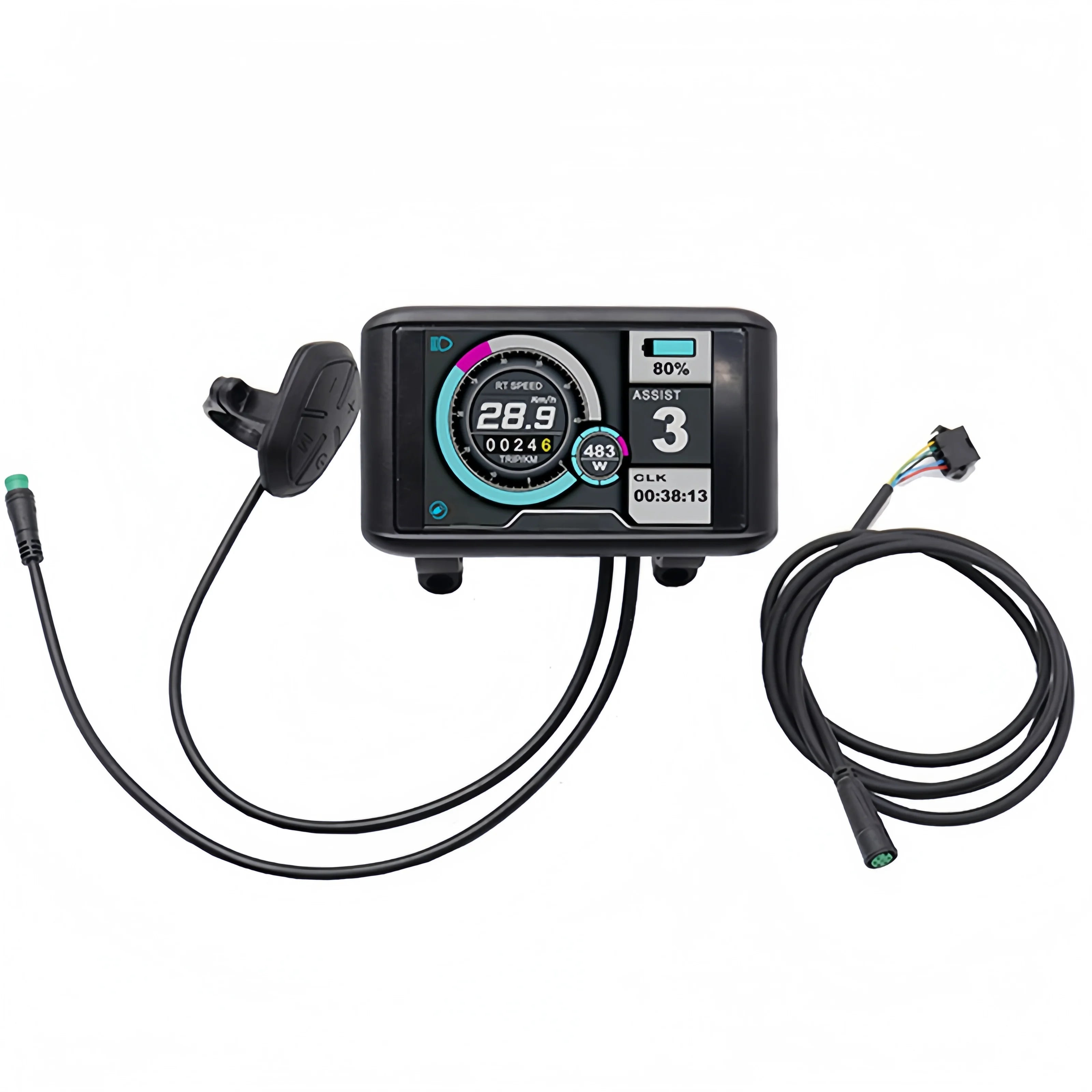

3. UKC1 Colour Display

4. Throttle

5. Brake Sensor or Hydraulic Disc Brake Sensor or Mechanic Brake or without any brake

6. PAS

7. Torque Arm

8. Alarm device

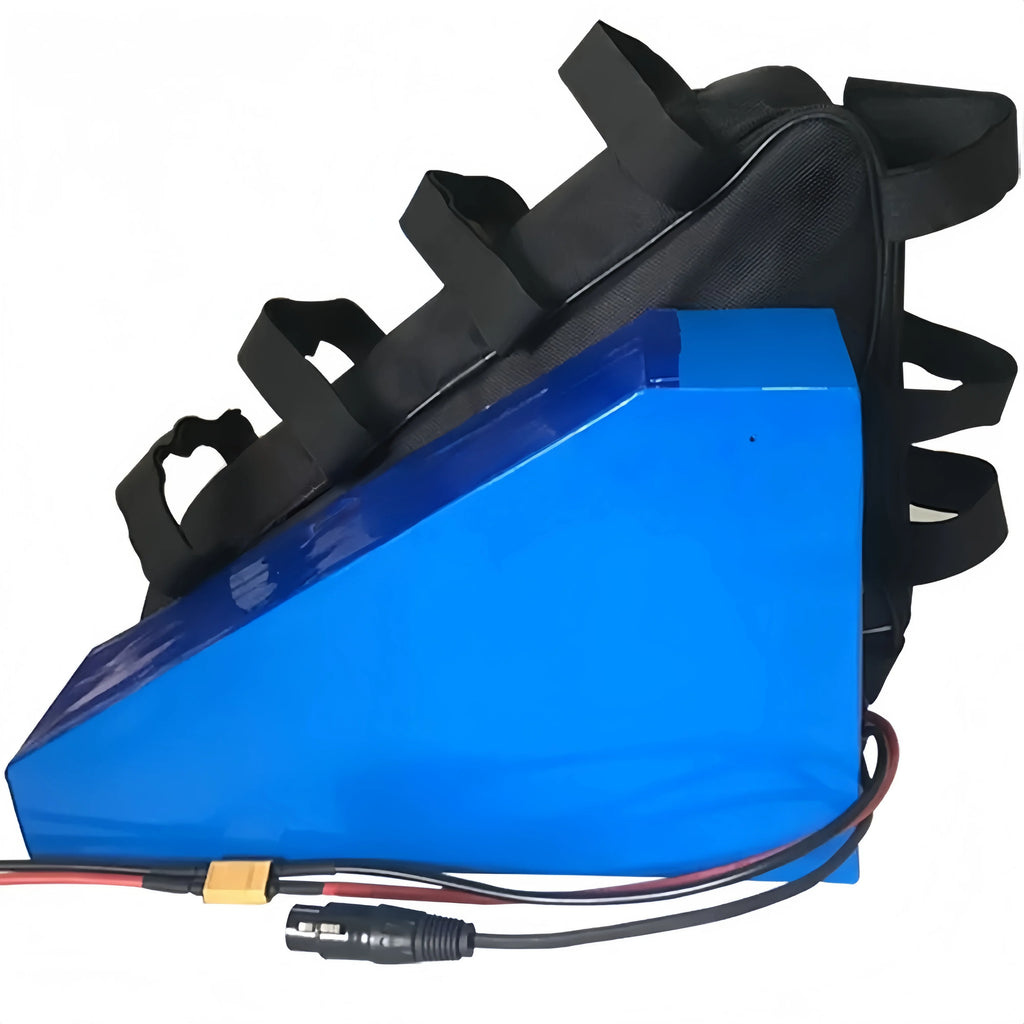

9. 72V 26AH Triangle Battery

10. 84V 6A Battery Charger

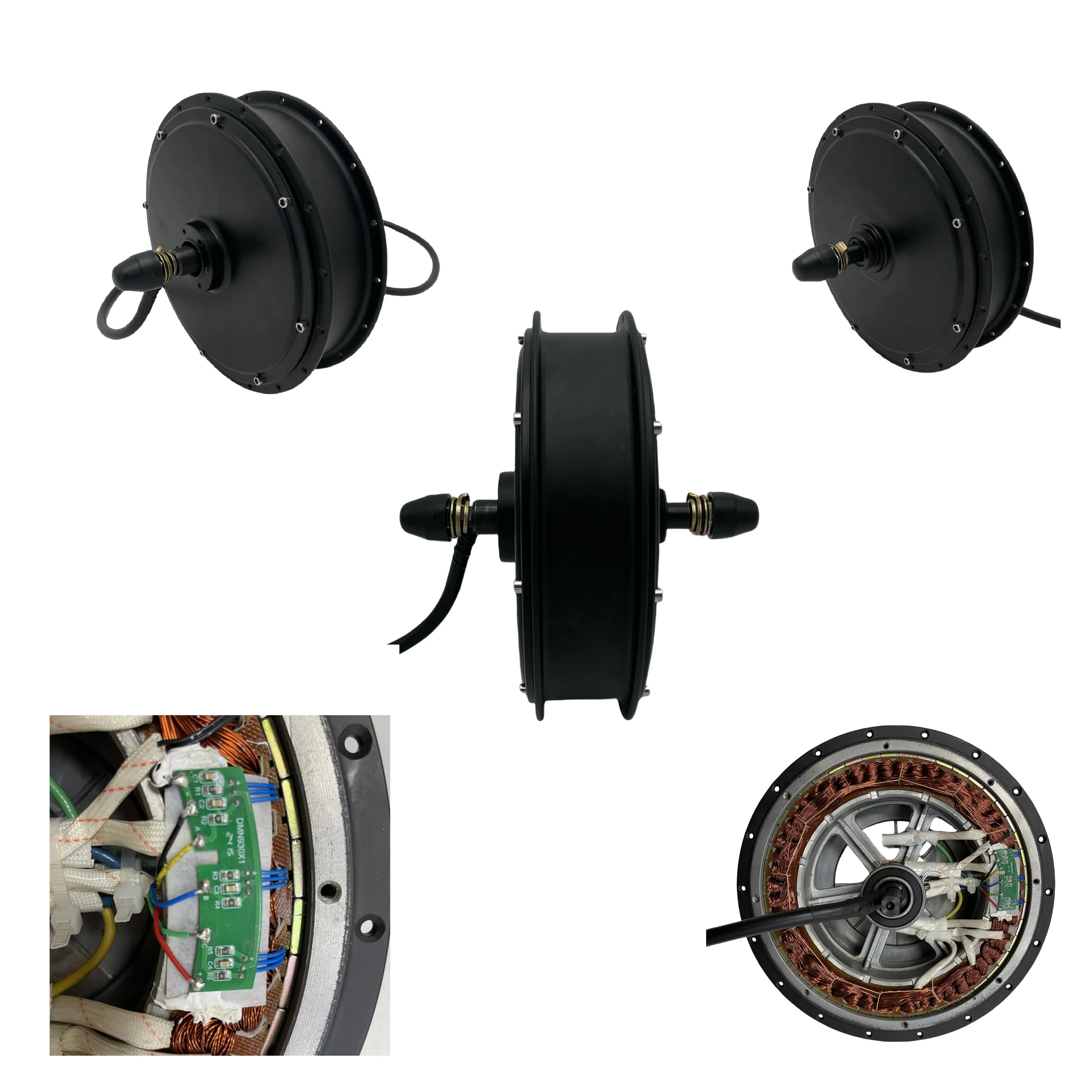

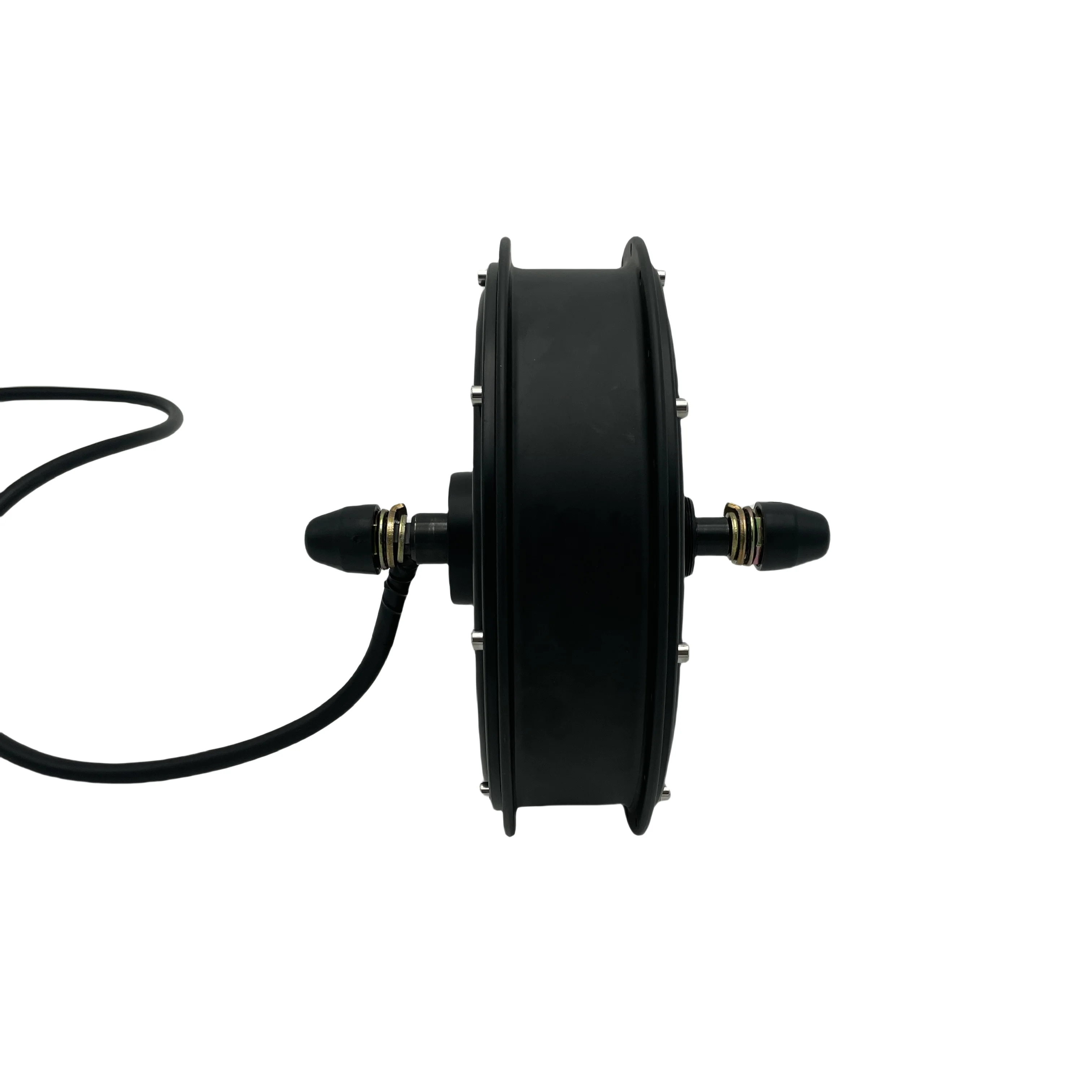

Motor Specification:

Magnet Width: 45mm

Magnet Quantity: 23 pairs (46 pcs)

Magnet Width: 45mm

Dual Hall Sensor (One for spare use)

High Motor Efficiency: 84.8%

Max Torque: 80.3 N.M.

Max Rotation: About 642RPM

Rated Rotation: About 600RPM

Wheel dropout: 135mm(Single Speed Freewheel), 152mm (with 7-speed freewheel)

Weight: 10kgs

Specification of 72V 26Ah Battery:

Battery Model: 72V 26Ah

Nominal Capacity (AH): 26Ah

Nominal Voltage (V): 72V

Source Resistance (mΩ）: <15

Cell Specification: 3.7V 5200mAH 3C Powerful LG INR21700-52E Cell

Cell Combination: 20-series, 5-parallels

Cell Size: 21700 Cylinder Cell

Diameter: 21mm, Height: 70mm

Cell Quantity (parallel*series): 100pcs

Discharge Cut off Voltage (V): 60 +/- 1V

Charge Cut off Voltage (V): 84V

Rated Discharge Current (A): 26A

Maximum Continuous Discharge Current (A): 60A

Maximum Continuous Charge Current (A): 12A

Charge Mode: CC/CV

Standard Charge Current (A): 6A

Charge Time under Standard Charge Current (Hours): 5h

Charge Temperature Range: 0 - 60 ℃

Discharge Temperature Range: -20 - 60 ℃

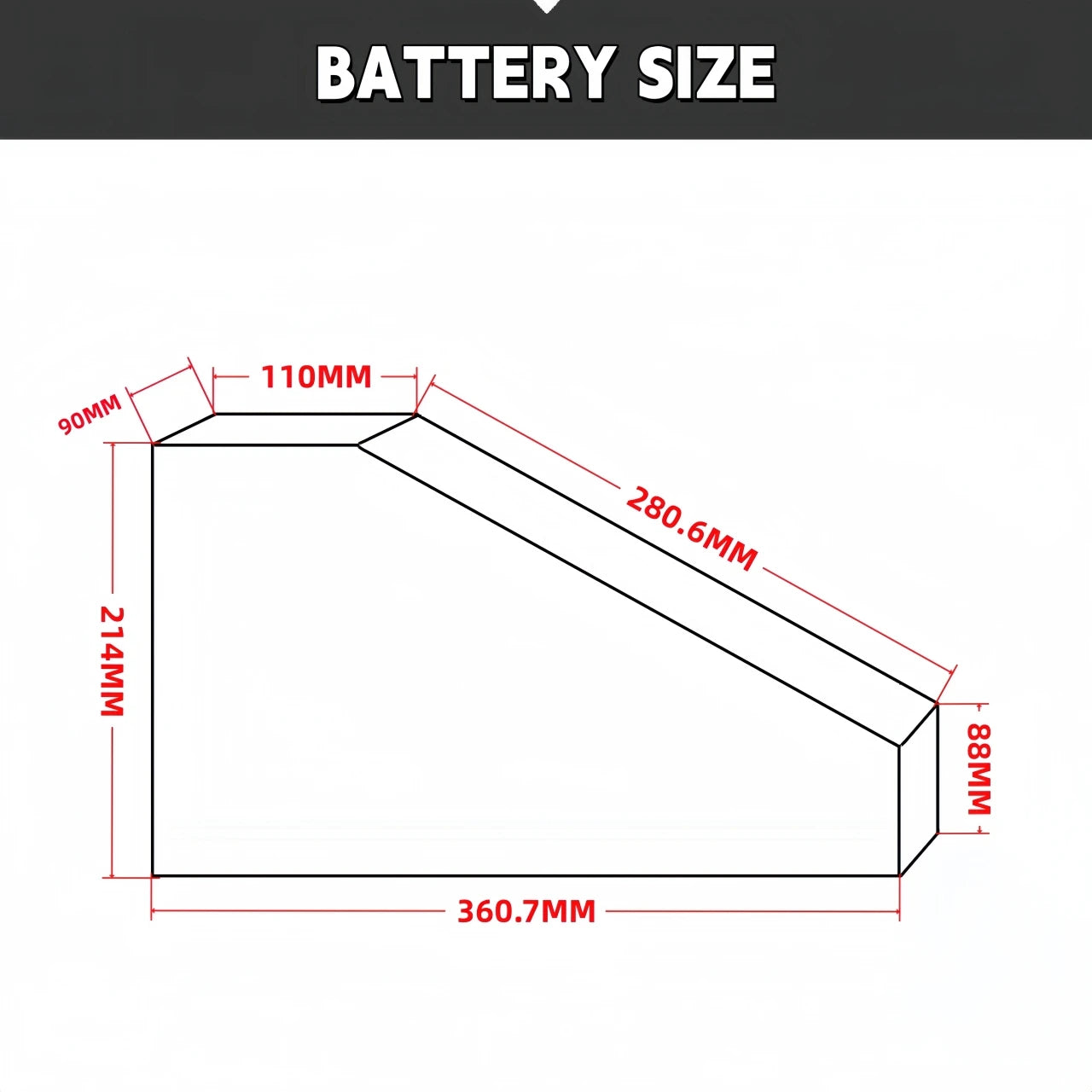

Battery Size: 360.7*214*110*280.6*88mm (Size in Photo)

Charging Cycles > 1000 cycling times

Battery Net Weight: 9.2kgs

Battery Gross Weight(include charger,bag and packing): 12kgs

Battery Application: For less than 72V 3600W Motor and Controller (72V 60A)
